1000 Series Strut

Our Product Range / Excavation Solutions / Excavation Support / Bracing Struts / 1000 Series Strut

1000 Series Strut

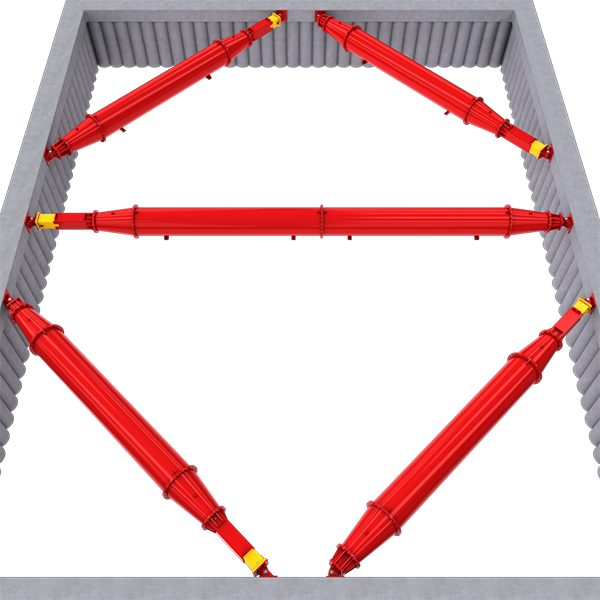

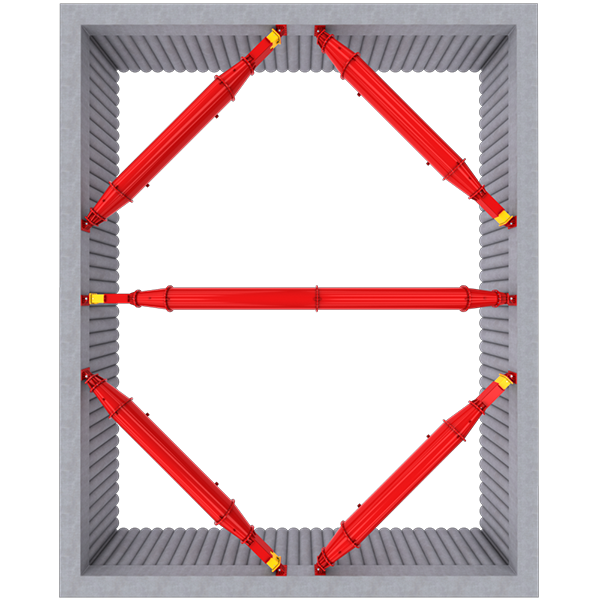

A heavy duty modular bracing strut system designed for use with 406 UC and T700 hydraulic bracing systems but can also be used for other applications including propping reinforced concrete piles and capping beams.

For use with 2500kN and 3500kN double acting hydraulic strut
Suitable for spans of 15.5m to 46m
Spans of up to 55m can be achieved using MGF super 1000 series
Compatible with 406 UC and T700 brace

The complete system can support loads of up to 3500kN and span up to 46m unsupported. Sizes increase in 1.0 increments.

Description

2500kN Hydraulic Strut

3500kN Hydraulic Strut

1000 Series Extension

Super 1000 Series

Length (min - max) (mm)

1625 - 2425

1670 - 2270

5000

6000

7000

10000

11500

2605

6150

11030

11100

13500

14050

Weight (kg)

1716

2200

2105

2480

2850

4000

4930

1884

3609

6050

6100

7200

7500
