600 Series Strut

Our Product Range / Excavation Solutions / Excavation Support / Bracing Struts / 600 Series Strut

600 Series Strut

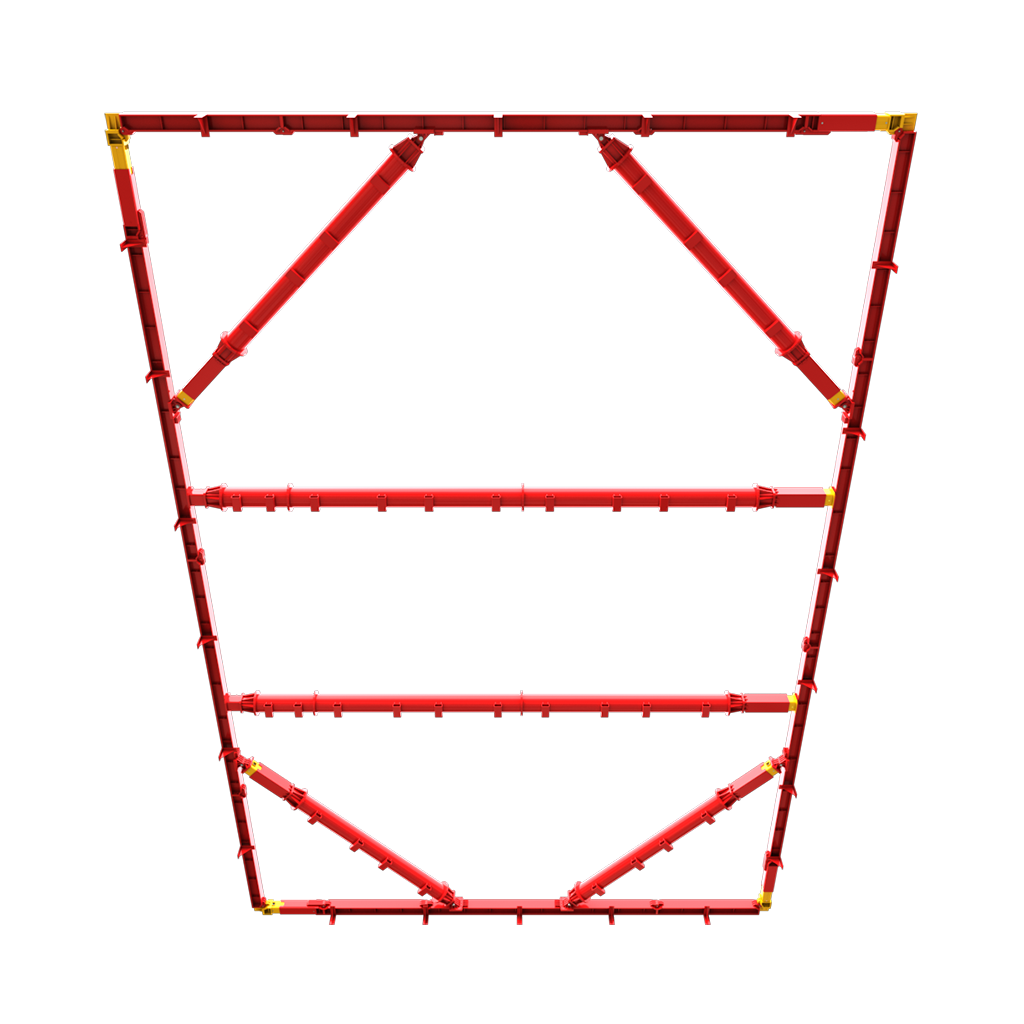

A heavy duty modular bracing strut system designed primarily for use with 305, 406 UC and T700 hydraulic bracing systems but can also be used for other applications, including propping reinforced concrete pipe and capping beams.

For use with 2500kN and 3500kN double acting hydraulic strut
Stronger 660 series extensions available
Suitable for spans of 10.0m to 30.6m
Compatible with 305 UC, 406 UC and T700 brace systems

The complete system can support loads of up to 3500kN and span up to 30.6m unsupported.

Description

2500kN Hydraulic Strut

3500kN Hydraulic Strut

600 Series Extension

Length (min - max) (mm)

1625 - 2425

1670 - 2270

1000

2000

3000

4000

7000

11500

3500

5000

10000

Weight (kg)

1716

2200

480

700

880

1065

1680

2600

1710

2316

4352
