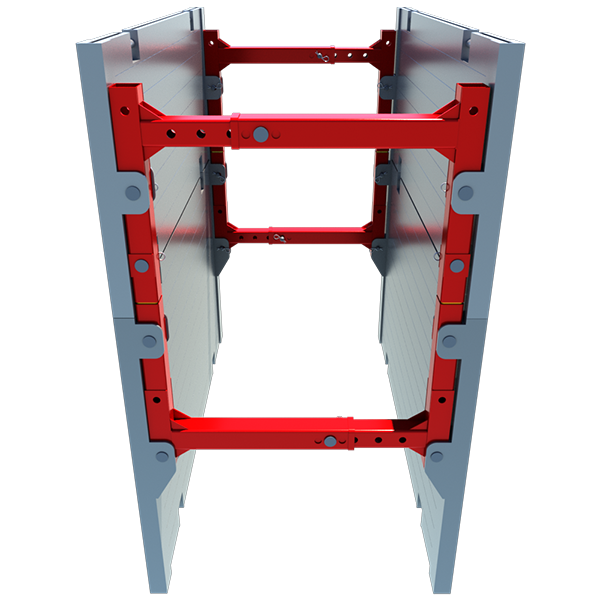

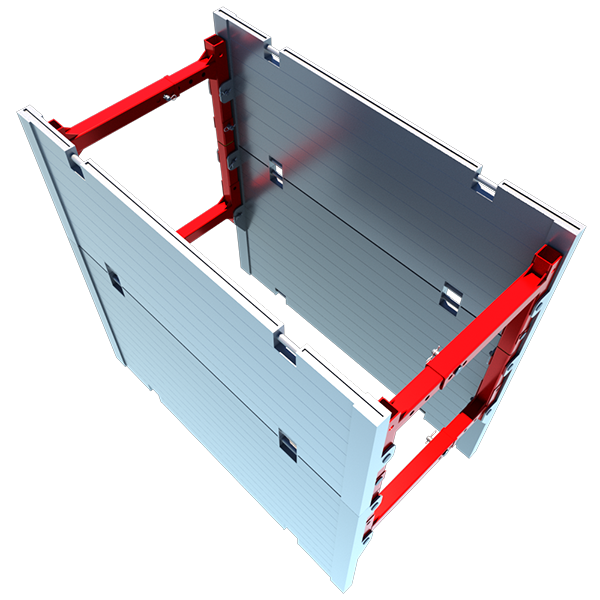

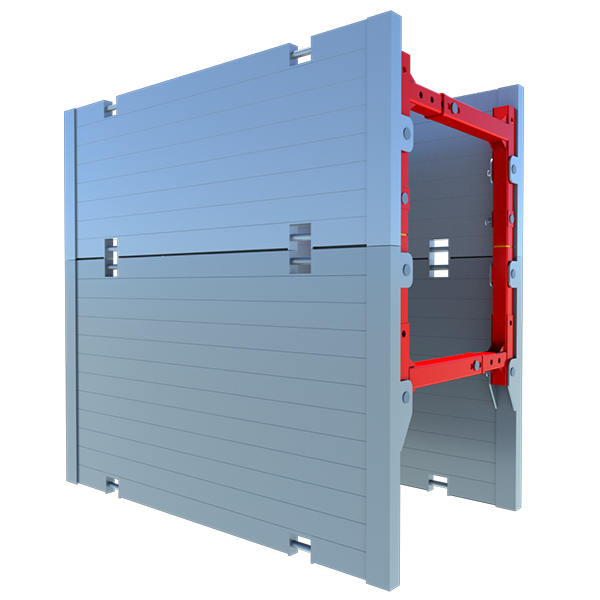

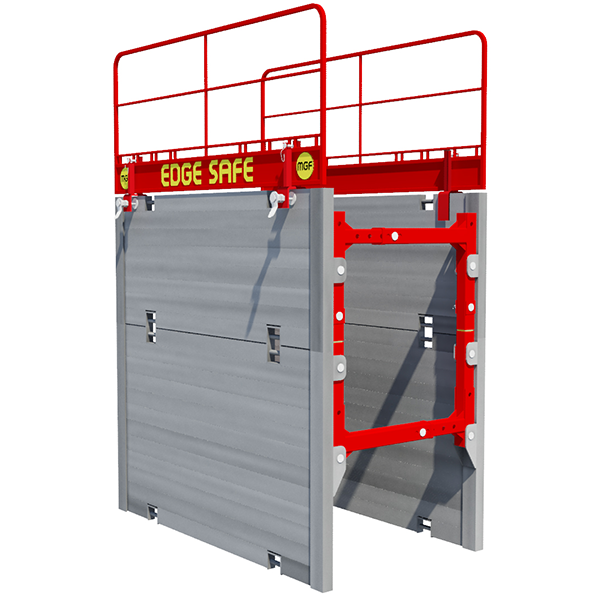

Aluminium Trench Box

A lightweight, two-sided mechanical excavation support system ideal for installing shallow utility pipes and services where ground movement is non-critical.

For trenches up to 2.4m deep and 1.75m wide
Ideal for use when a small excavator restricts the maximum weight
Recommended pipe lengths of up to 2.5m and pipe outer diameters of up to 0.75m
Designed to be installed using the excavate and lower in place technique

Description (m)

2.0 x 1.5 Base

2.0 x 1.0 Top

2.5 x 1.5 Base

2.5 x 1.0 Top

3.0 x 1.5 Base

3.0 x 1.0 Top

Max Depth (m)

2.4

2.4

2.4

2.4

2.4

2.4

Internal Width (mm)

735 - 1635

735 - 1635

735 - 1635

735 - 1635

735 - 1635

735 - 1635

Panel Thickness (mm)

60

60

60

60

60

60

Box Weight (kg)

336

242

382

270

428

298

Length Between Struts (mm)

1790

1790

2290

2290

2790

2790

Clearance Below Bottom Struts (mm)

825

-

825

-

825

-
