Counterbalance Davit System

Our Product Range / Lifting & Safety / Safety / Davits & Accessories / Counterbalance Davit System

Counterbalance Davit System

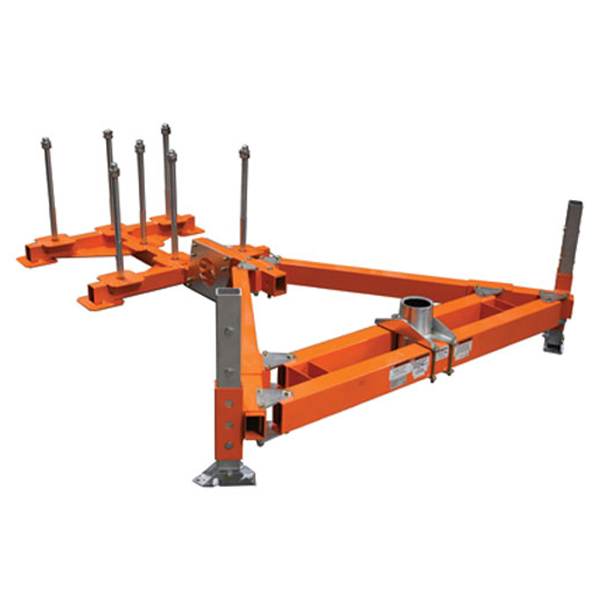

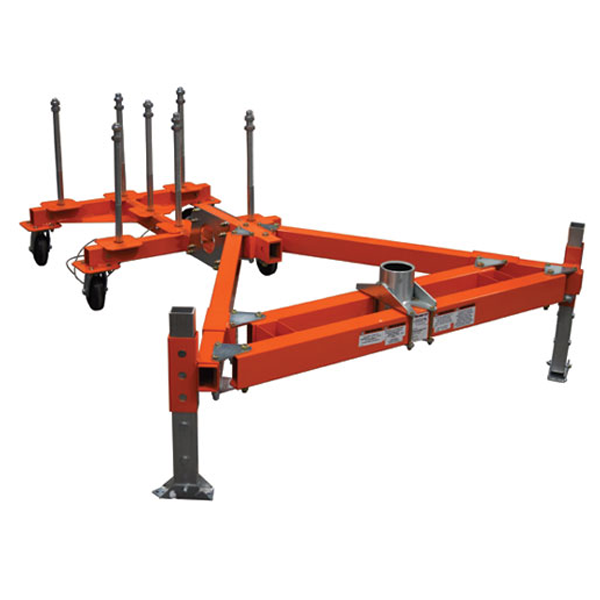

This counterbalance davit system consists of five individual lightweight components to enable easy transportation and installation. RGA4 or AB15RT fall arrest / RGR 7 man-riding winches are connected to the free standing base, the anchoring system includes a weight rack that uses counter balance / ballast weights to provide support for a davit arm. No floor penetration is required, the complete system is modular and can be assembled in minutes providing a safe means of man-riding, fall arrest and rescue from height.

Independently adjustable legs for use on uneven surfaces
The standard range of excavation depth varies from 1m-12m deep
24 x 15kg weights provide 4:1 safety factor
Extendable reach allowing between 19.5” to 29”

The counterbalance davit system is ideal for multiple entry points to various confined spaces or for when a permanent base plate cannot be mounted.

Davit Arm Weight (kg)

12

Davit Weight (kg)

8

Base Weight (kg)

60

Total Assembled Weight (kg)

360
