Endsafe Panels

Our Product Range / Excavation Solutions / Excavation Support / Shoring Safety Products / Endsafe Panels

Endsafe Panels

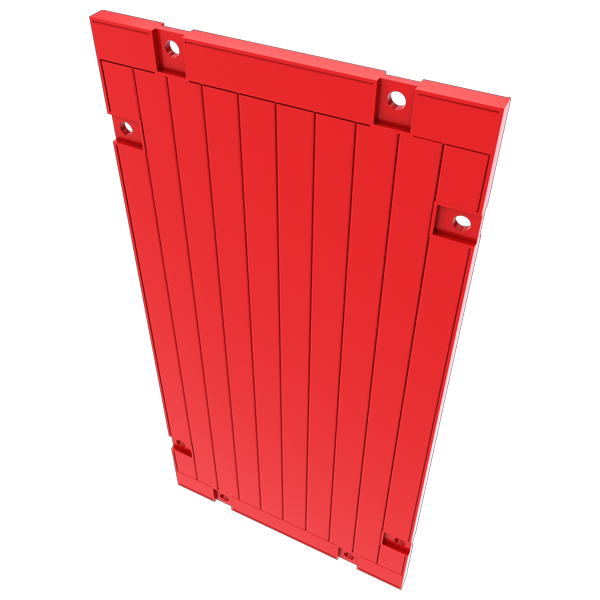

A steel panel system designed to safely support vertical soil faces at open ends of boxes or trench excavations where it is not possible to batter the soil back.

Designed to be installed by an excavator

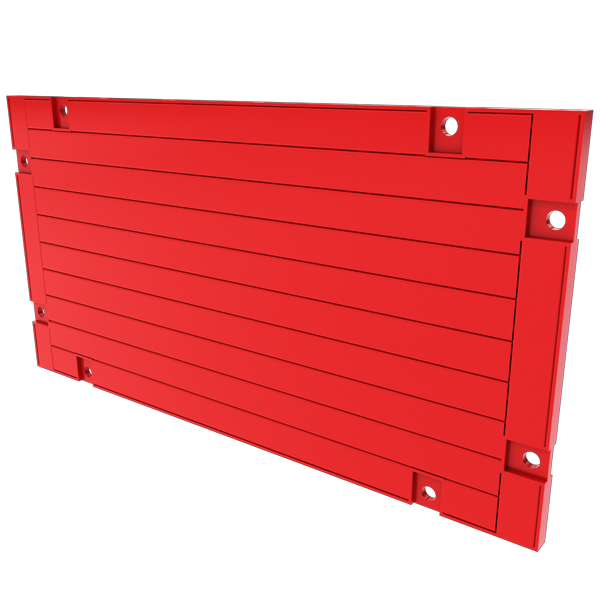

For trench depths up to 4.8m deep and widths from 1.2m to 4.0m (panels can be used in both orientations and should be combined with similar panel thickness to provide the required coverage)
Can be used instead of trench sheets to close off open ends of box systems
Designed to safely support vertical soil faces at open ends of box and hydraulic waler systems where it is not possible to batter the soil back

No more than 2 panels should be connected together. Utility Panels also available, which include a 1.2m square hatch to accommodate service entry

Description (L x H) (m)

1.8 x 1.2 Endsafe Panel

2.4 x 1.2 Endsafe Panel

2.4 x 1.8 Endsafe Panel

3.0 x 2.0 Endsafe Panel

2.4 x 2.4 Endsafe Panel

4.0 x 2.0 Endsafe Panel

3.0 x 2.0 Utility Endsafe Panel

2.4 x 2.4 Utility Endsafe Panel

4.0 x 2.0 Utility Endsafe Panel

Weight (kg)

225

290

410

510

380

845

512

453

840

Panel Thickness (mm)

60

100

60

100
