High Clearance Trench Box

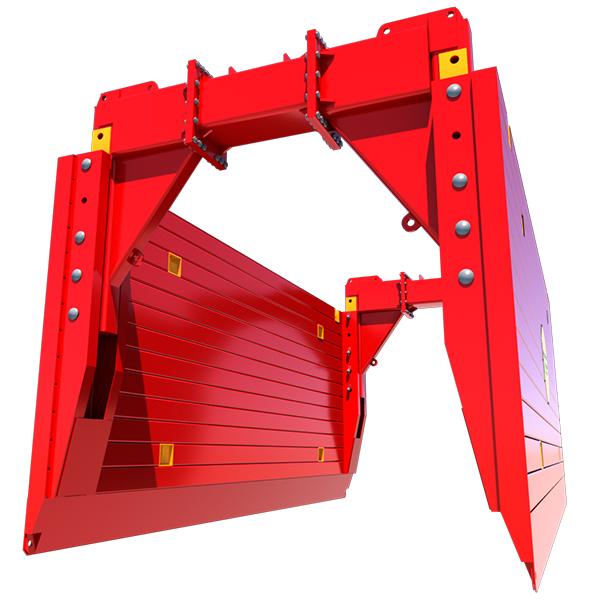

A two-sided mechanical excavation support system ideal for installing large diameter pipes and tanks. For us in trenches with widths of up to 5.9m wide and 5.0m deep.

Generally suitable for pipe min. lengths of up to 6.0m and a pipe outside diameter of up to 3.0m
Designed to be installed by the excavator and lower in place technique

High Clearance Trench Box

Clear

Description Length x Height (m)

7.0 x 3.0 Base

7.0 x 2.0 Top

Max Depth (m)

5.0

2.0

Panel thickness (mm)

150

150

Approx. Assembled Weight (kg)

9720-11550

4826-5581

Internal Trench Width (m)

2.1-5.6

2.1-5.6

Min. Length Between Struts (m)

5.9

6.2

Max Clearance Below Struts (m)

3.0

0.8
