King Posts and Panels

Our Product Range / Excavation Solutions / Excavation Support / Box Systems / King Posts and Panels

King Posts and Panels

An ideal solution for single-sided retaining walls or basement type excavations. For when it is not feasible to drive sheet piles or where a clear working area is essential to allow construction of the works.

Compatible with endsafe and trench box panels giving standard panel widths from 1.8m to 3.5m

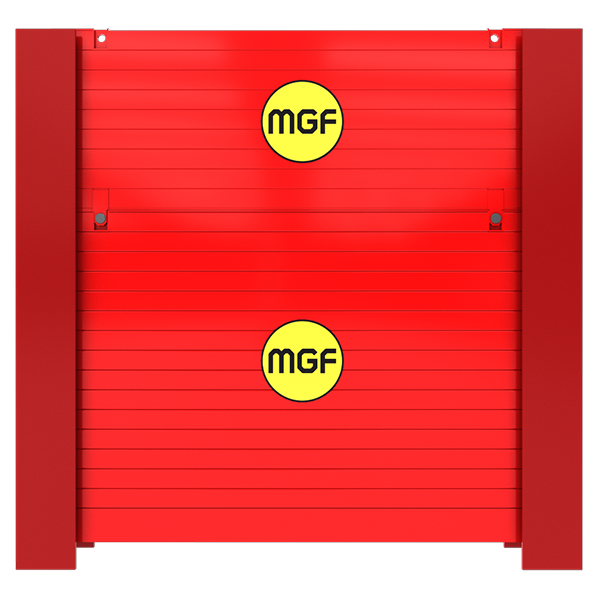

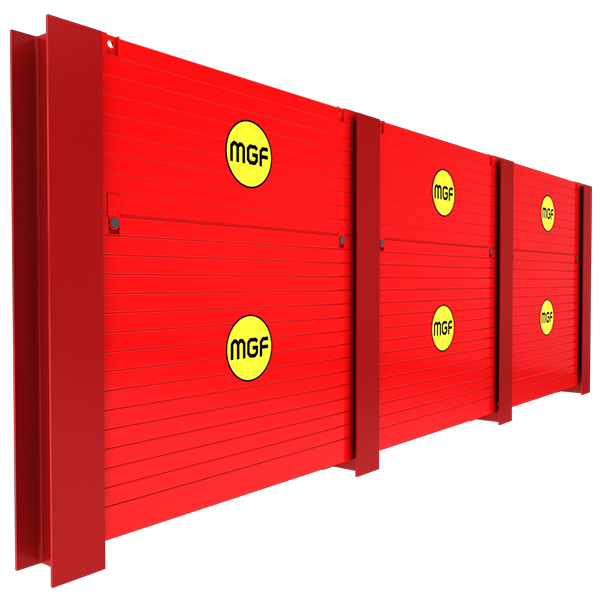

Consists of steel column posts with steel in-fill panels
Retained heights of up to 4m
Allows a clear area for construction works

Base and top units can be connected to achieve additional height although endsafe panels cannot be connected to achieve additional height.

King Posts and Panels

Clear

Panel Length x Height (mm)

3000 x 2010 Base

3000 x 1100 Top

3500 x 2462 Base

3500 x 1624 Top

1800 x 1200 Endsafe

2400 x 1200 Endsafe

2400 x 1800 Endsafe

3000 x 2000 Endsafe

2400 x 2400 Endsafe

4000 x 2000 Endsafe

Panel Thickness (mm)

60

100

60

100

Weight (kg)

435/586

320

970

686

225

290

410

510

380

845

Panel SWL (kN/m²)

45

50

45

Required King Post Centres, Cp (m)

3.1

3.6

1.9

2.5

3.1

2.5

4.1
