MGF Pitch & Pull

Our Product Range / Excavation Solutions / Trench Sheets, & Sheet Piles / Installation & Extraction Ancillaries / MGF Pitch & Pull

MGF Pitch & Pull

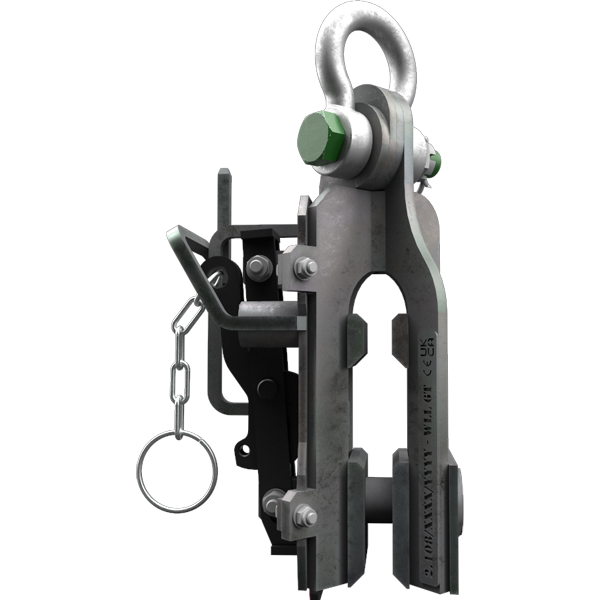

Combining two sheet piling ancillaries, a Quick Release Pitching Shackle (QRS) and an Extractor. This innovative combination utilises a new mechanism that prevents the accidental release of sheets if the lifting chain is under tension.

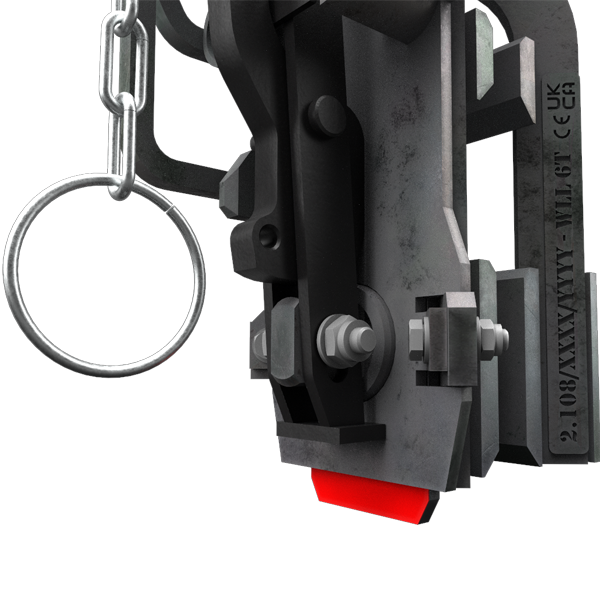

New mechanism that prevents the accidental release of sheets, ‘Lift Lock’ mechanism cannot release the sheets whilst there is tension on the chain
Around 40% lighter than similar products
Additional plunger mechanism available when using as an extractor, locks mechanism so pin cannot release until mechanism is deactivated by hand
Combines the functionality of a QRS and an extractor into one unit

Description

Pitch & Pull

WLL (t)

6

Jaw Dimensions (width - depth)

20 - 220

Weight (kg)

15

Pin Diameter (mm)

35

Compatible with

FKD / KKD / ER / FLP / PU / GU
