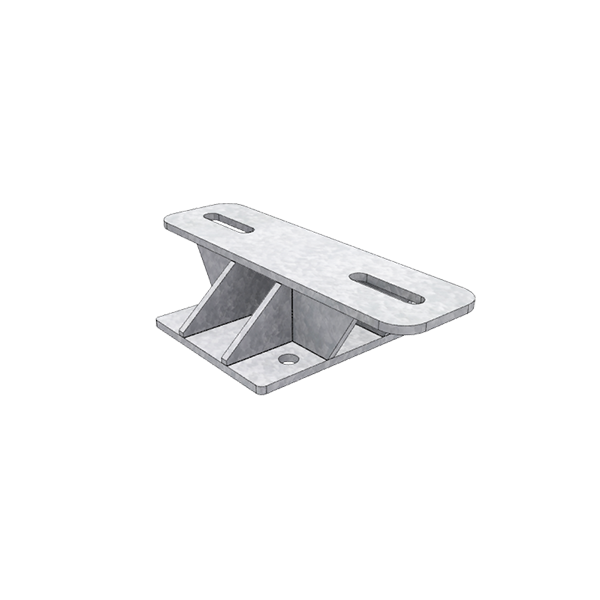

Light Duty Needle Beam Connector

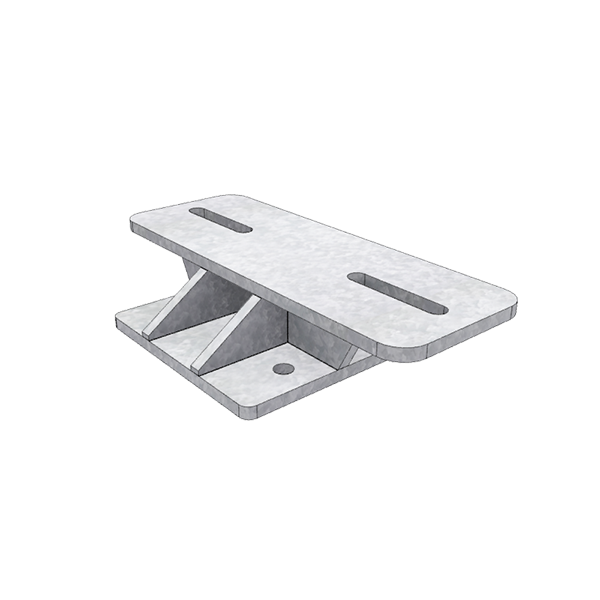

Medium Duty Needle Beam Connector

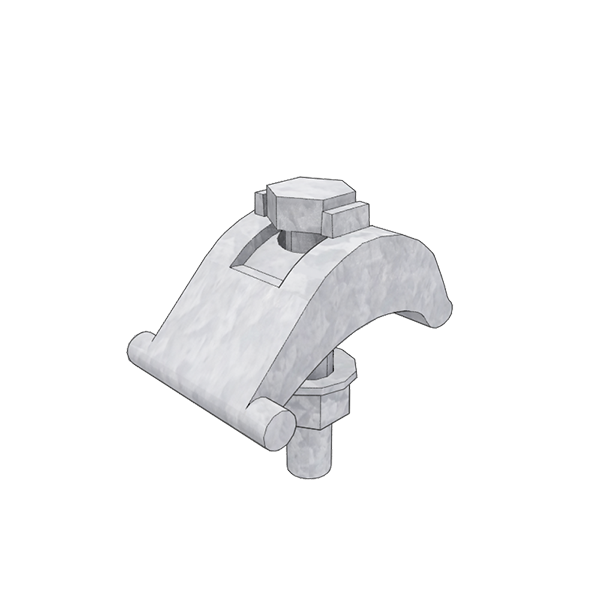

Needle and Grillage Beam Clamp

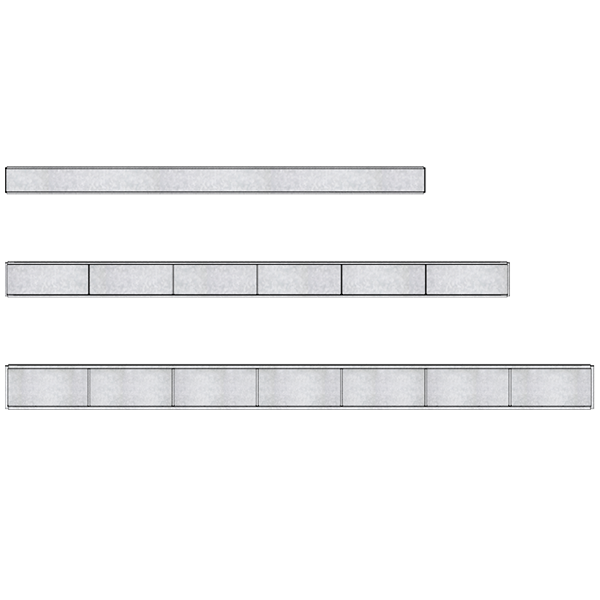

Needle and Grillage Beams

UniShore® Needle & Grillage Beams

Light Duty Needle Beam Connector

Medium Duty Needle Beam Connector

Needle and Grillage Beam Clamp

Needle and Grillage Beams

UniShore® Needle & Grillage Beams

MGF provide a range of UniShore® Needle & Grillage Beams sections and connectors are available for the Light and Medium systems.

3 beam sizes available to suit loading requirements
203 & 254 beams drilled for direct fixing to UniShore end details
Selection of lengths available to suit working space requirements
Non standard grillage beams can be fabricated on request

152UC37, 203UC60 and 254UC107 beams are available.

Needle & Grillage Beams

Clear

Description

B152-2000

B152-2500

B203-2500

B203-3000

B254-2500

B254-3500

LNBC

MNBC

BC1

Section Designation

152 x 152 x 37

152 x 152 x 37

203 x 203 x 60

203 x 203 x 60

254 x 254 x 107

254 x 254 x 107

Light Duty Needle Beam Connector

Medium Duty Needle Beam Connector

Needle/Grillage Beam Clamp

Length (mm)

2000

2500

2500

2500

3000

3500

-

-

-

Weight (kg)

80

98

170

205

315

435

6.7

15.1

0.22
