T33 Lifting Tray

Our Product Range / Lifting & Safety / Lifting / Heavy lifting / T33 Lifting Tray

T33 Lifting Tray

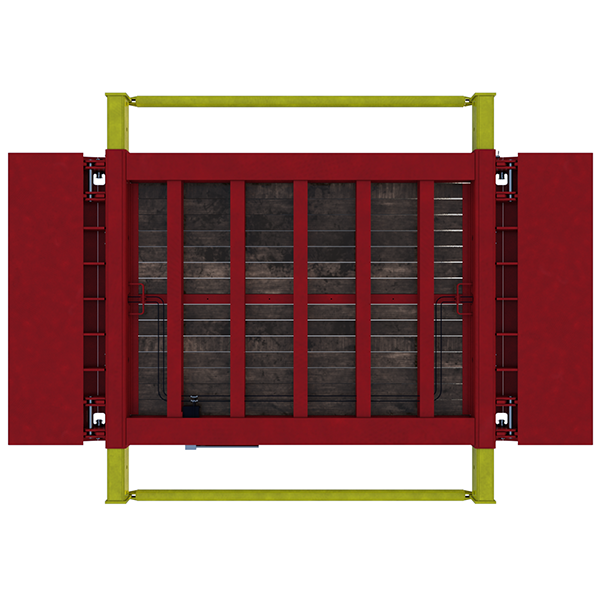

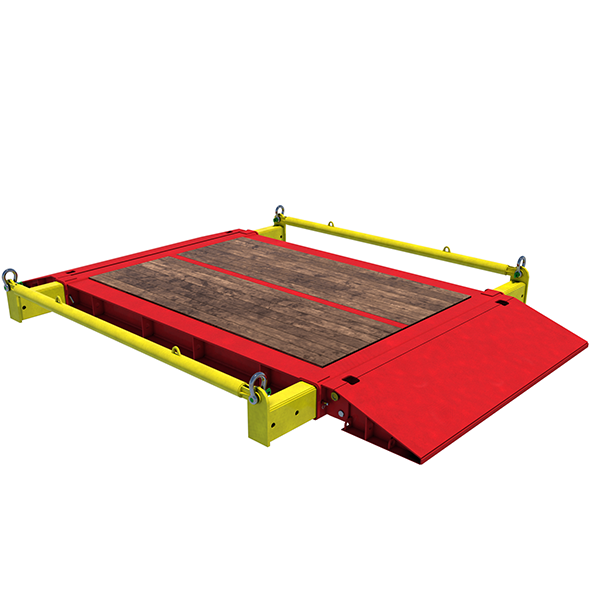

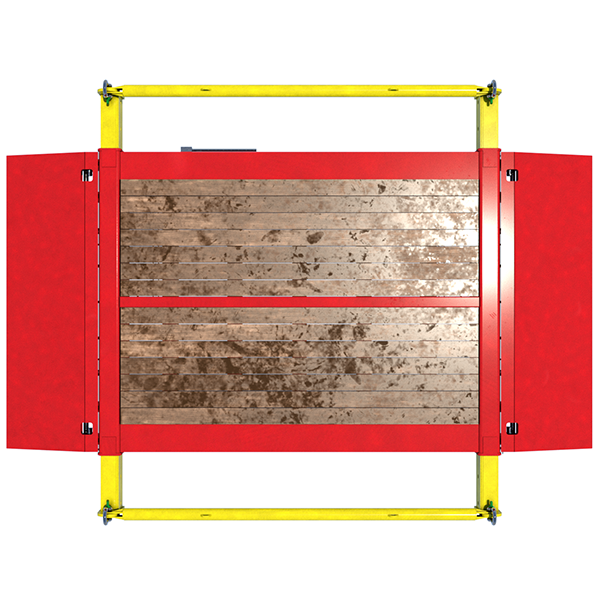

The T33 Lifting Tray has been designed specifically to safely lift excavators or heavy machinery, up to a maximum weight of 33t, in and out of excavations and shafts. Ideal for use on major projects, or any projects that require a crane to handle plant and heavy machinery.

Adjustable, telescopic arms increase effective width from 2.88m to 3.88m
Tray is 3.7m long with the ramps giving an additional 0.9m length each end for a total max. length of 5.5m

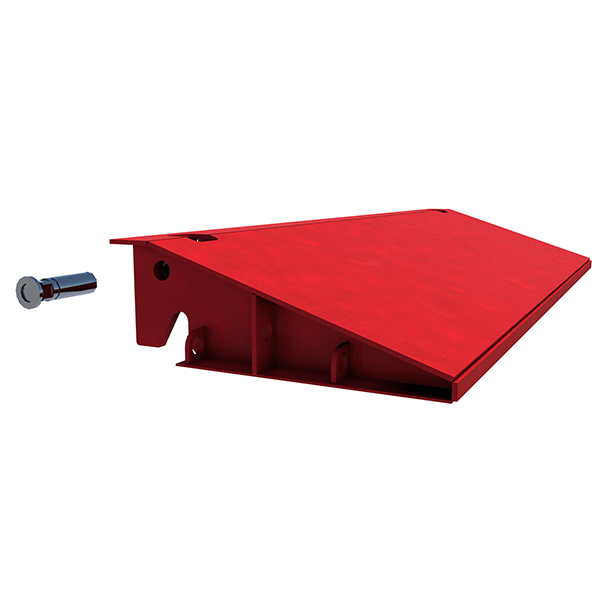

Features 2 removable ramps, which attach to the tray with a simple pinned connection
Available with a range of endless round fabric slings

Our T33 Lifting Tray is compatible with MGF’s F55 Spreader Frames and S80 Spreader Beams.

Description

Max Assembled Weight

Lifting Tray Main Tray

Lifting Tray Ramp

Lifting Tray Spreader Arm

13.5t Green Pin Bow Shackle

4.75t Green Pin Bow Shackle

5m Round Sling

Weight (kg)

3950

2630

650

100

6.5

1.2

17
