Trench Box

Our Product Range / Excavation Solutions / Excavation Support / Box Systems / Trench Box

Trench Box

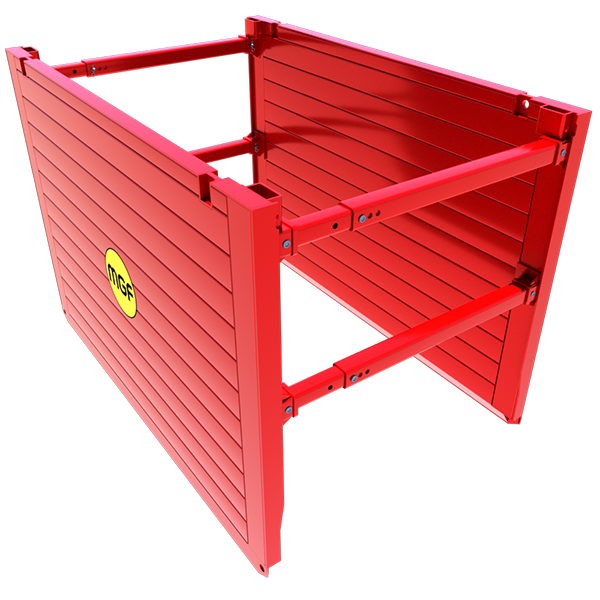

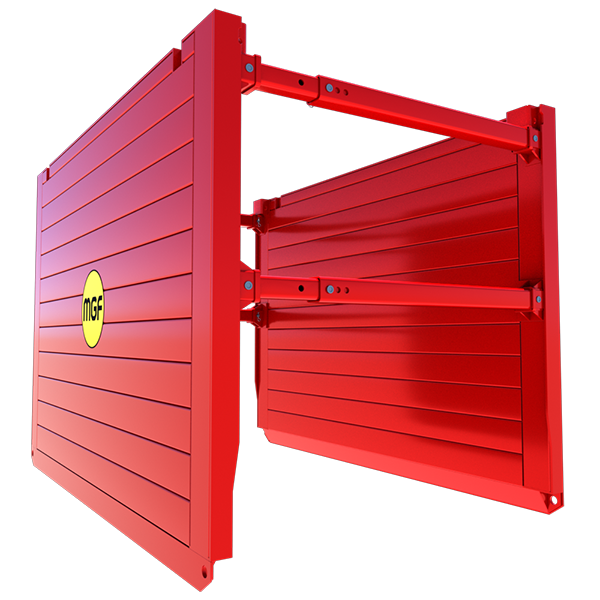

A two-sided mechanical excavation support system, ideal for the installation of utility pipes and services when ground movement is non-critical.

Bottom cutting edge for ease of installation
Top panels available to increase excavation depth
Designed to be installed by the excavator and lower in place technique
Compatible with endsafe panels

This simple and easy to assemble system has adjustable struts that allow quick width adjustments in trenches up to 7.2m deep and 3.9m wide.

Trench Box

Clear

Description/Sizes

Mini Base

Lightweight Mini Base

Mini Top

Standard Base

High Clearance Standard Trench Box Panel

Standard Top

Titan Base

4.2m Base

4.2m Top

Length x Height (mm)

3000 x 2010

3000 x 1100

3530 x 2462

3500 x 2500

3530 x 1624

3530 x 3910

4200 x 2890

4200 x 1420

Max Depth (mm)

4190

-

5710

4000

-

7158

5730

-

internal width (mm)

605 -3625

605 – 3625

605 -3625

600 -3700

1210 -3910

Panel thickness (mm)

60

100

108

100

Box Weight (kg)

1270

970

690

2040

1200

1420

4770

3876

1833

Length between Struts (mm)

2716

3246

3076

3720

Under Strut Clearance (mm

903

-

1225

1225/1525

-

2358

1650/1850

-
