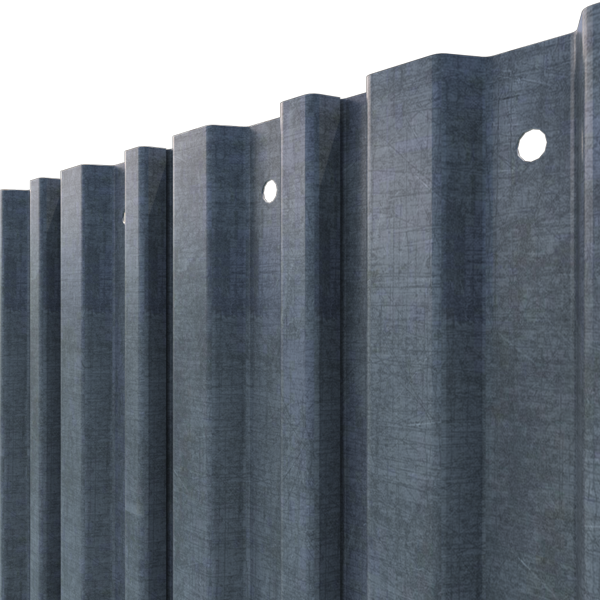

KKD 6006 2

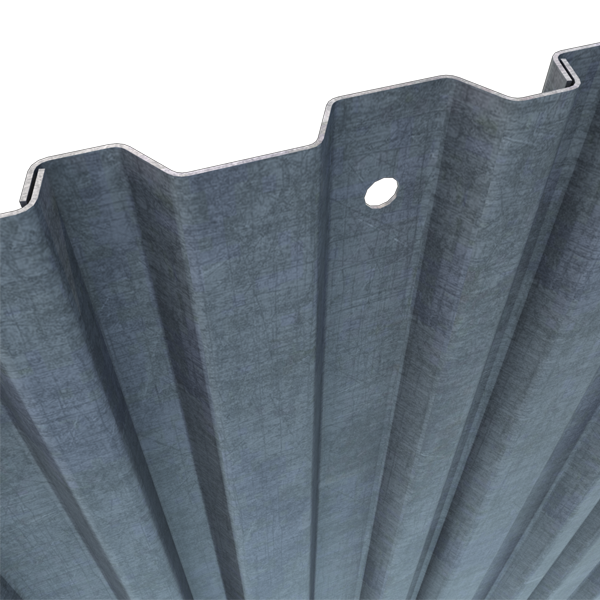

KKD 6006 1

Trench Sheets – KKD 600/8 (S275 JRC)

Trench sheets provide an effective ground solution to support the vertical faces of small to medium sized trenches and excavations.

Galvanising service
Available lengths: 4m – 8m
Clutch sealing service

Profile

KKD 600/8

Steel Grade

S275

Width (mm)

600

Height (mm)

80

Thickness (mm)

8.0

Weight (kg/m)

50.0

Weight (kg/m²)

83.3

Section Modulus Z (cm³/m)

242.0

Moment Capacity (kNm/m)

48.4
