Trench Sheets – L8 (S275 JRC)

Our Product Range / Excavation Solutions / Trench Sheets, & Sheet Piles / Trench Sheets / Trench Sheets – L8 (S275 JRC)

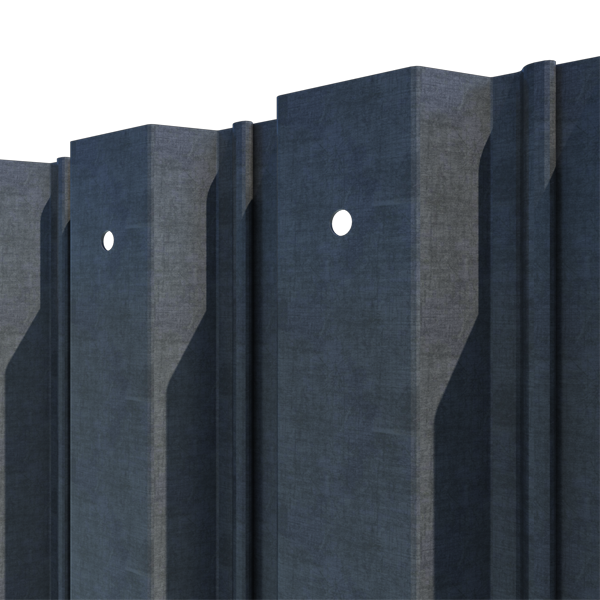

600/3.5 Trench Sheet product image

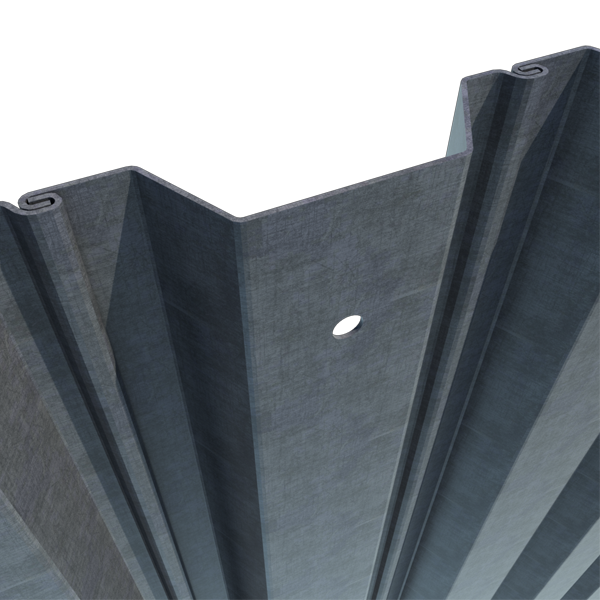

600/3.5 Trench Sheet product image

FLP 6003.5 2

FLP 6003.5 1

Trench Sheets – L8 (S275 JRC)

Trench sheets provide an effective ground solution to support the vertical faces of trenches and excavations.

Galvanising service
Clutch sealing service

Profile

L8

Steel Grade

S275

Width (mm)

430

Height (mm)

38

Thickness (mm)

3.5

Weight (kg/m)

14.4

Weight (kg/m²)

33.2

Section Modulus Z (cm³/m)

52.3

Moment Capacity (kNm/m)

9.1
