Underslung Lifting Beam

Our Product Range / Lifting & Safety / Lifting / Heavy lifting / Underslung Lifting Beam

Underslung Lifting Beam

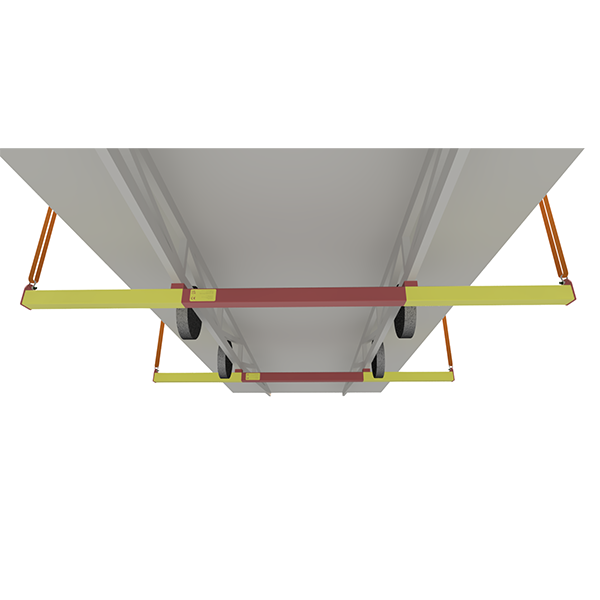

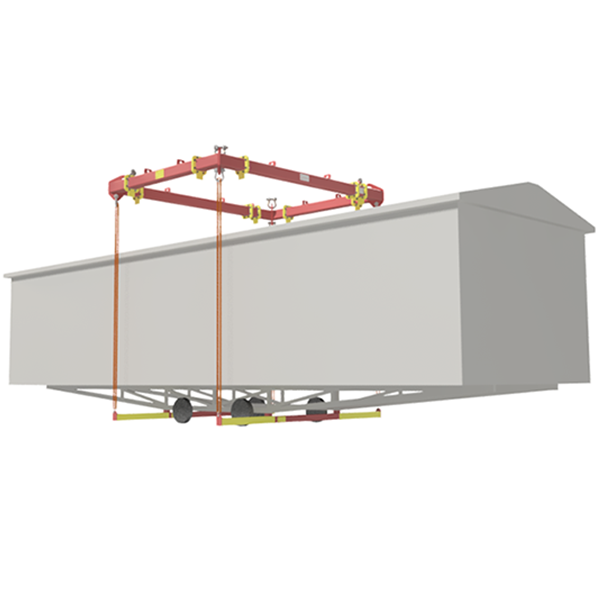

The Underslung Lifting Beam is used in pairs, these are positioned under the item requiring lifting, this is then attached to either a Spreader Beam or Spreader Frame, connected together using slings. The Underslung Lifting Beam is comprised of a rigid length of steel with 3.25t safety shackles.

Can be used in conjunction with our S80 Spreader Beam and F55 Spreader Frame system
Ideal for lifting static caravans
Combined Working Load Limit of 4t
Available in 2 lengths 3.5m and 4.25m

The 3.5m beam is suitable for 10ft wide caravans and the 4.25m beam is suitable for 12ft caravans.

Height (mm)

200

Width (mm)

132

Length (mm)

3500

4250

Weight (kg)

60

70

WLL per Lift Point

1000

WLL per Beam

2000

Description

3.5m Underslung Lifting Beam

4.25m Underslung Lifting Beam

Weight (kg)

60
