UniShore® GS2

UniShore® GS2 is an aluminium shoring system that is lightweight and provides a fast, efficient and versatile structure with a load capacity of up to 140kN (in some situations this can be exceeded, please contact MGF DSL).

• Manufactured in the UK to EN 1090 execution class 2 and conforms to safety requirements of BS 5975
• Fully compatible with the MGF UniShore Light Duty Range
• Achievable prop lengths from 1.7m to 3.8m
• The system is easy to erect and remove, reducing labour time and costs on site

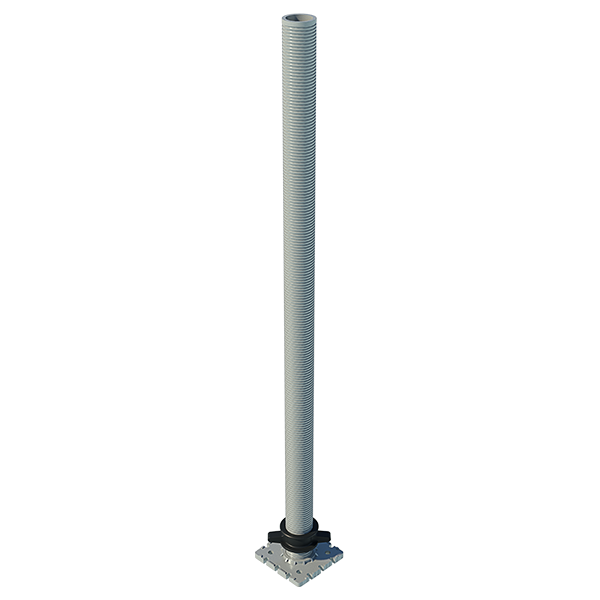

The UniShore® GS2 inner leg is used with 2 sizes of outer leg and extension pieces to create an adjustable prop suitable for heights from 1.7m up to 3.8m . Props can be used independently as a prop or with ledger frames to form shoring towers. The inner comes complete with a retaining screw for the collar to prevent against over extension. The outer leg has a spring catch to secure the inner leg in position and prevent against unintentional disengagement. The end plates are castellated for interlocking when connecting extension pieces. Legs can be adjusted to your preferred height and locked in with a screw collar. The GS2 strut can be supplied with leg bracing couplers and the system is fully compatible with MGF’s Light Duty Unishore range. Accessories include:

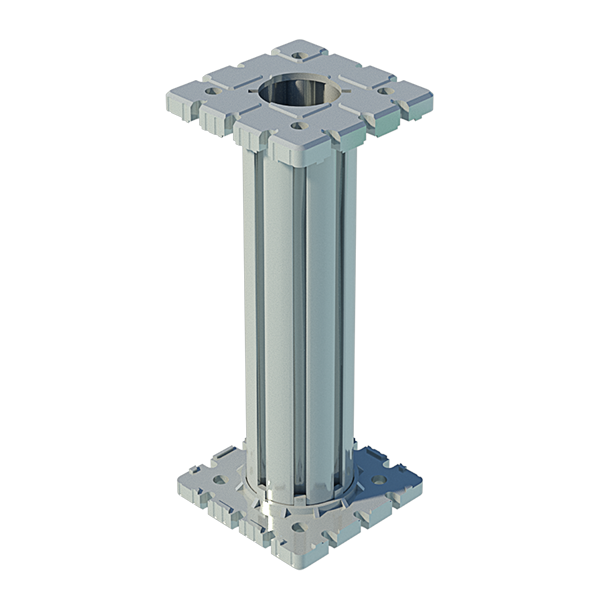

• Extension pieces

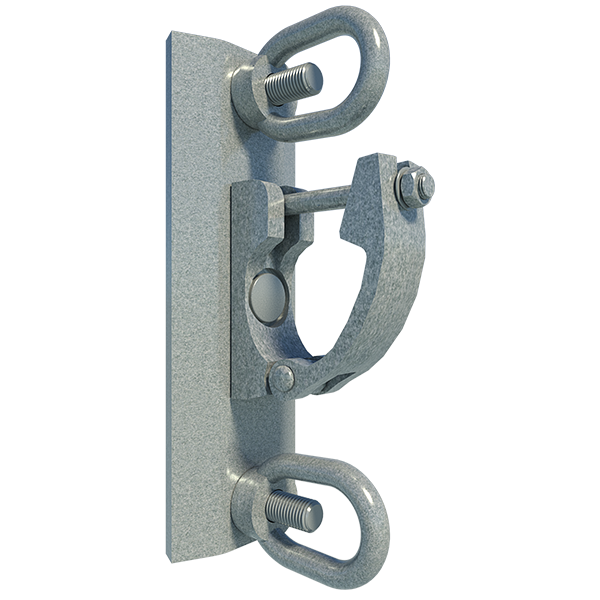

• Leg Bracing Couplers
• GS2 Spanner
