305 UC Brace

Our Product Range / Excavation Solutions / Excavation Support / Hydraulic Bracing / 305 UC Brace

305 UC Brace

Designed to brace large/deep cofferdams for the safe installation of underground structures, deep drive/thrust pits or basements.

Double acting hydraulic power pack combines with a range of fixed length extensions to form the leg brace
Large sizes possible when combined with 200, 300, 400 and 600 series bracing struts
Compatible with 254 UC and 406 UC brace to enable optimum design solutions
allows for safe installation of underground structures

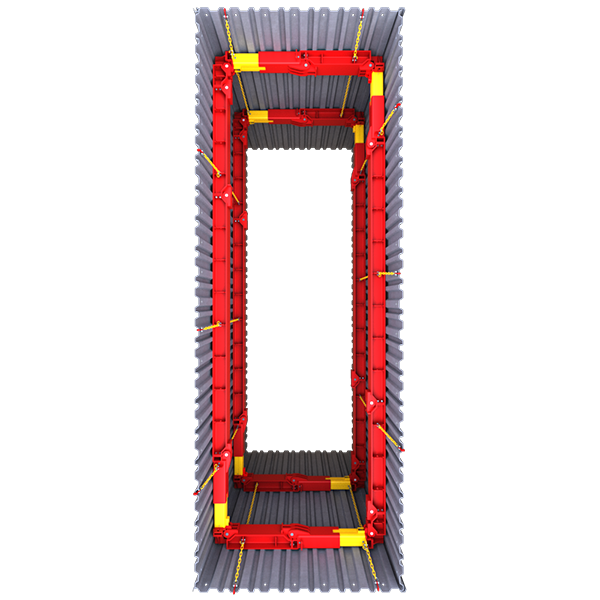

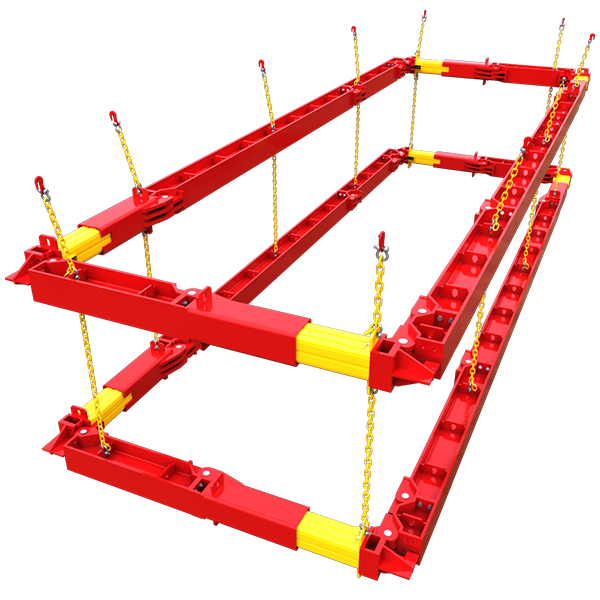

The 305 UC Brace is a heavy duty, modular, hydraulic bracing system, which is suitable for clear spans of up to 15.5m. The range is both simple to assemble and highly versatile includes a hydraulic power pack and extension pieces.

Description

600kN 305 UC Ram

305 UC Extension

Length (min - max) (mm)

1270 - 1868

500

750

1000

1500

2500

6000

Weight (kg)

613

170

220

260

350

510

1100
