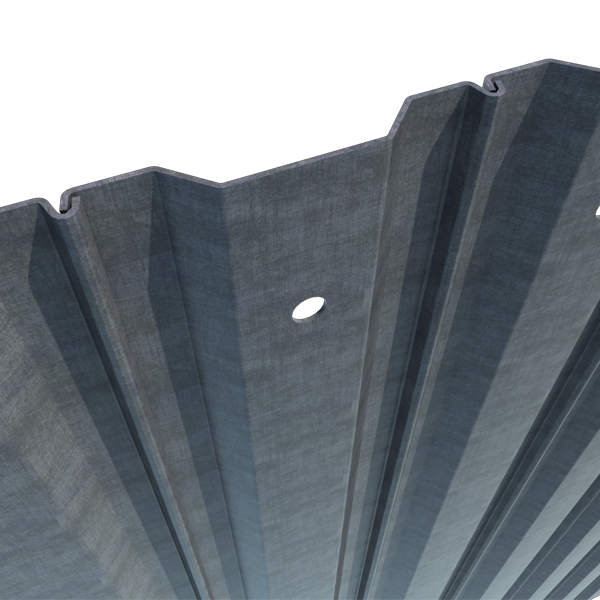

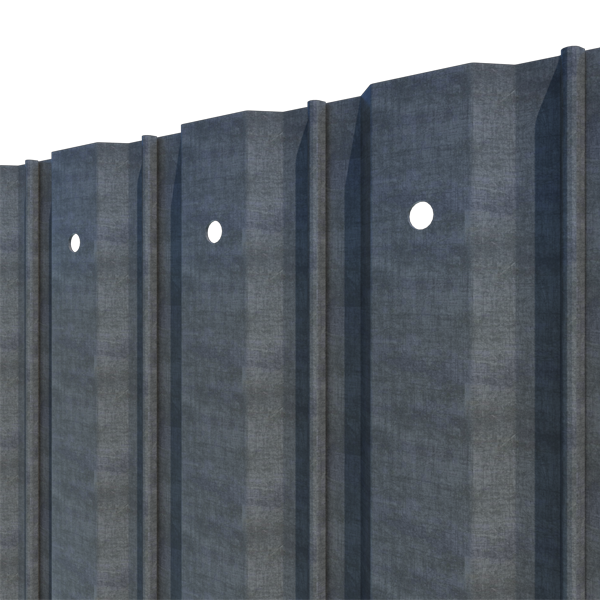

Trench Sheets – FKD 400/6 (S275 JRC)

Trench sheets provide an effective ground solution to support the vertical faces of trenches and excavations.

Galvanising service
Available lengths: 2m – 6m
Clutch sealing service

Profile

FKD 400/6

Steel Grade

S275

Width (mm)

400

Height (mm)

50

Thickness (mm)

6.0

Weight (kg/m)

22.1

Weight (kg/m²)

55.3

Section Modulus Z (cm³/m)

98.8

Moment Capacity (kNm/m)

19.8
