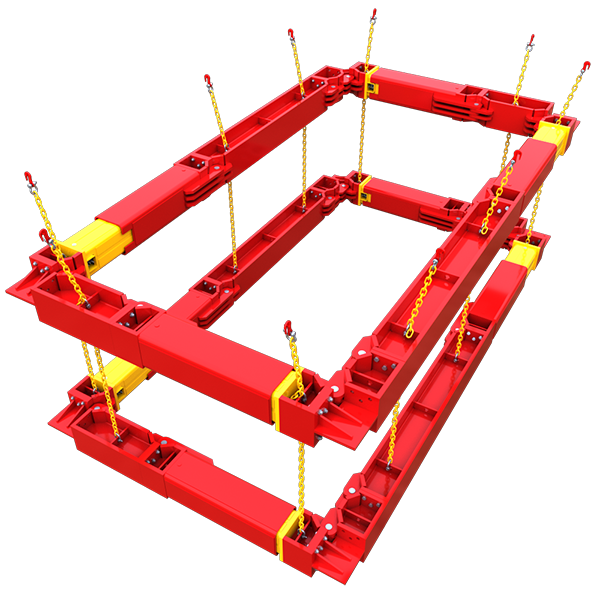

Manhole Brace Product Image

Manhole Brace Product Image

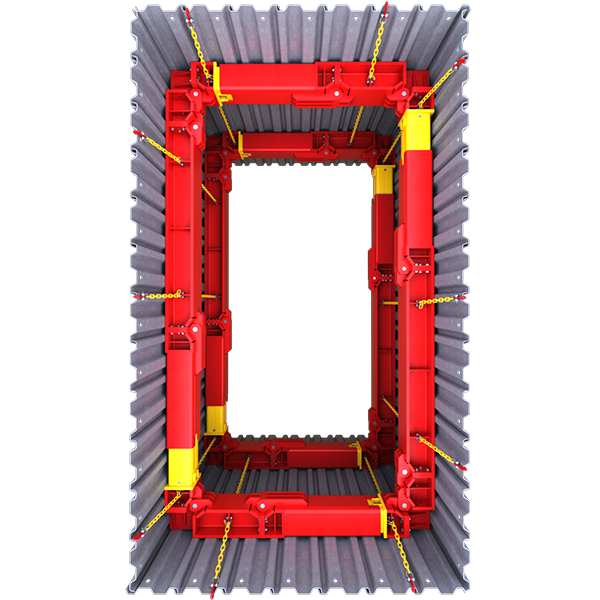

406 UC Brace Product Image

406 UC Brace Product Image 1

Manhole Brace

The simple to assemble, four-sided hydraulic frame system has been designed to brace small cofferdams and ensure the safe construction of manholes, pipe installations and tanks as well as carrying out repairs to highways and footpaths.

Available in a range of sizes from 1.4m to 6.0m
Individual legs are interchangeable and can be used in different combinations
Hydraulic cylinder incorporated in each brace leg for adjustment of frame size
Installed using an excavator

Product Description

Manhole Brace - (A) Leg

Manhole Brace - (B) Leg

Manhole Brace - (AB) Leg

Manhole Brace - (AB) Leg

Manhole Brace - (BC) Leg

Manhole Brace - (CD) Leg

Manhole Brace - (D) Leg

Hydraulic Type

A = SA

B = SA

AB- = DA

AB = DA

BC = DA

CD = DA

D = DA

Assembled Leg Range (min - max) (mm)

1730 - 2617

2192 - 3703

1375 - 2005

1943 - 3143

2973 - 4173

3573 - 4773

4836 - 6063

Weight (kg)

120

172

146

200

312

341

570
