Restraining Chains

Our Product Range / Excavation Solutions / Excavation Support / Shoring Ancillaries / Restraining Chains

Heavy Duty Restraining Chains

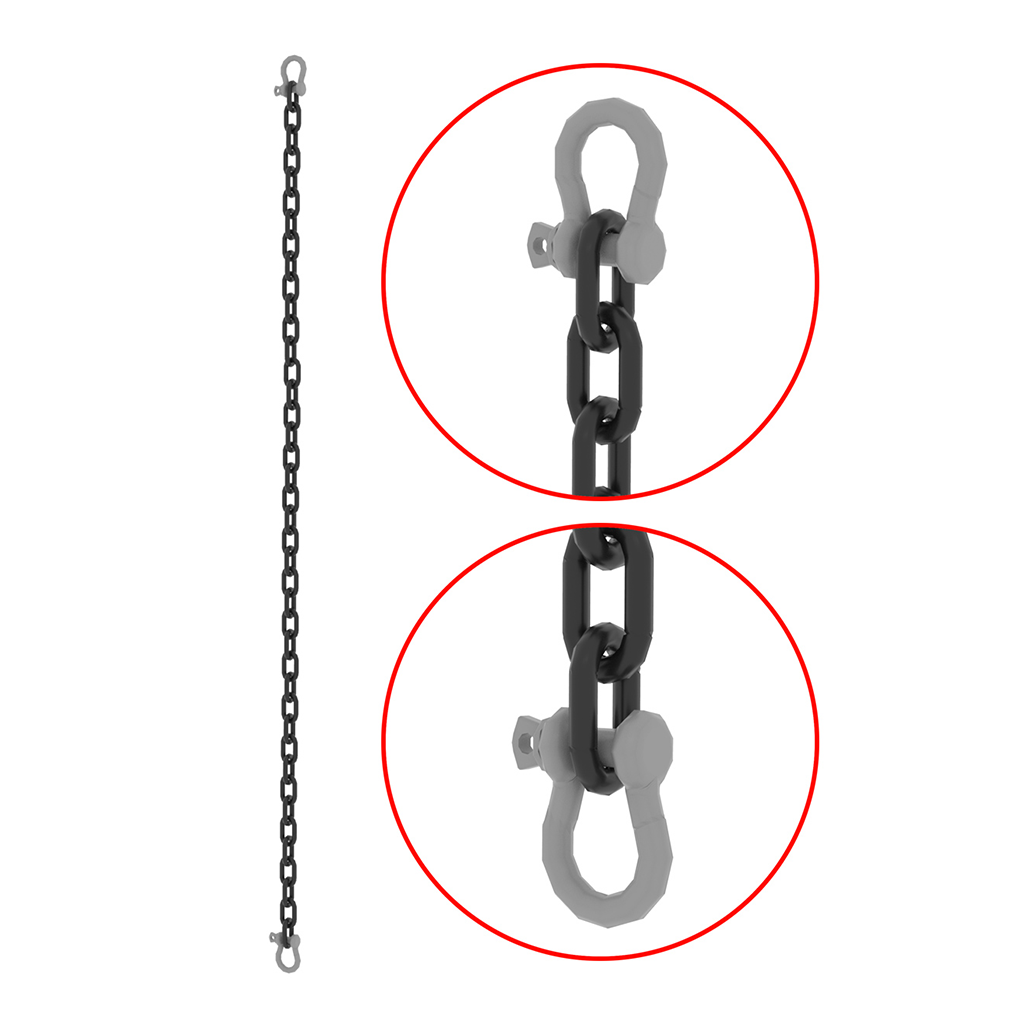

view 2Heavy Duty Restraining Chains

Standard Duty Restraining Chains view 2

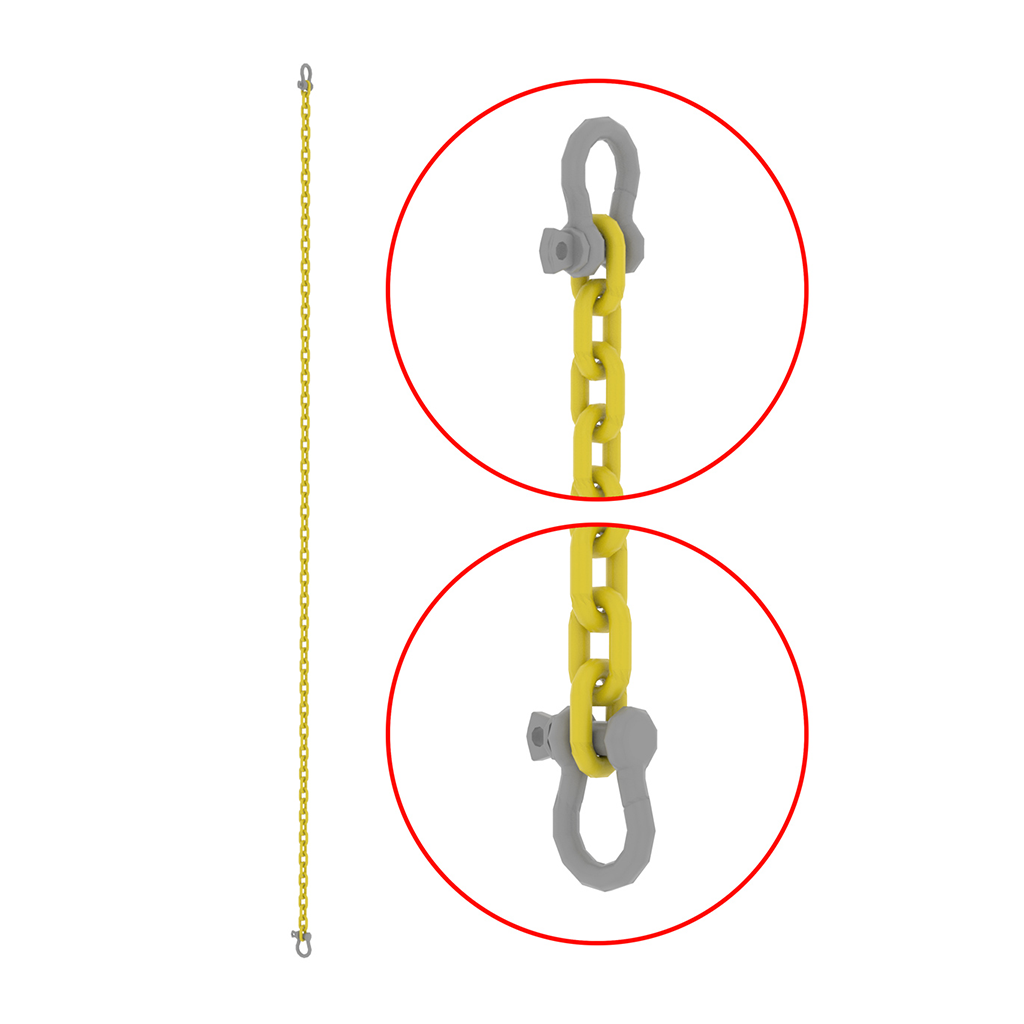

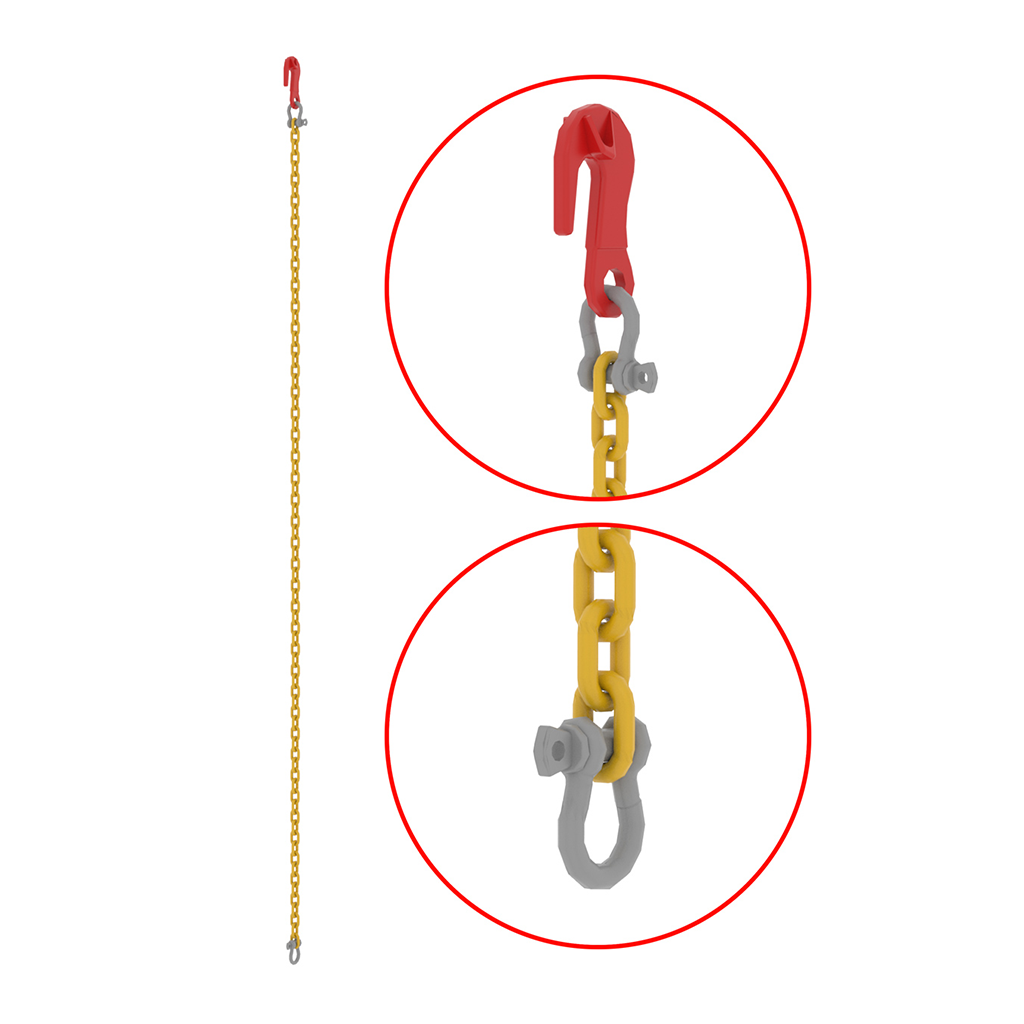

Standard Duty Restraining Chains

Utiltiy Restraining Chains view 2

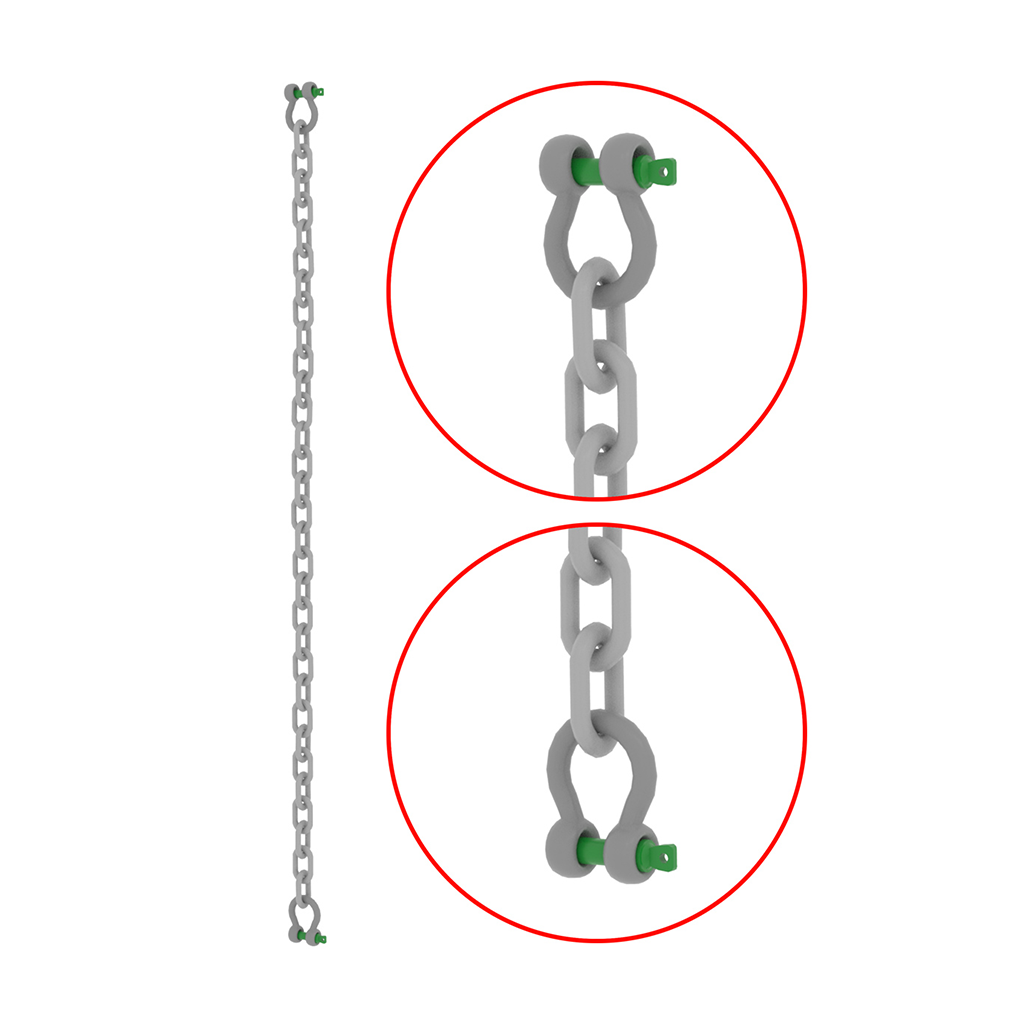

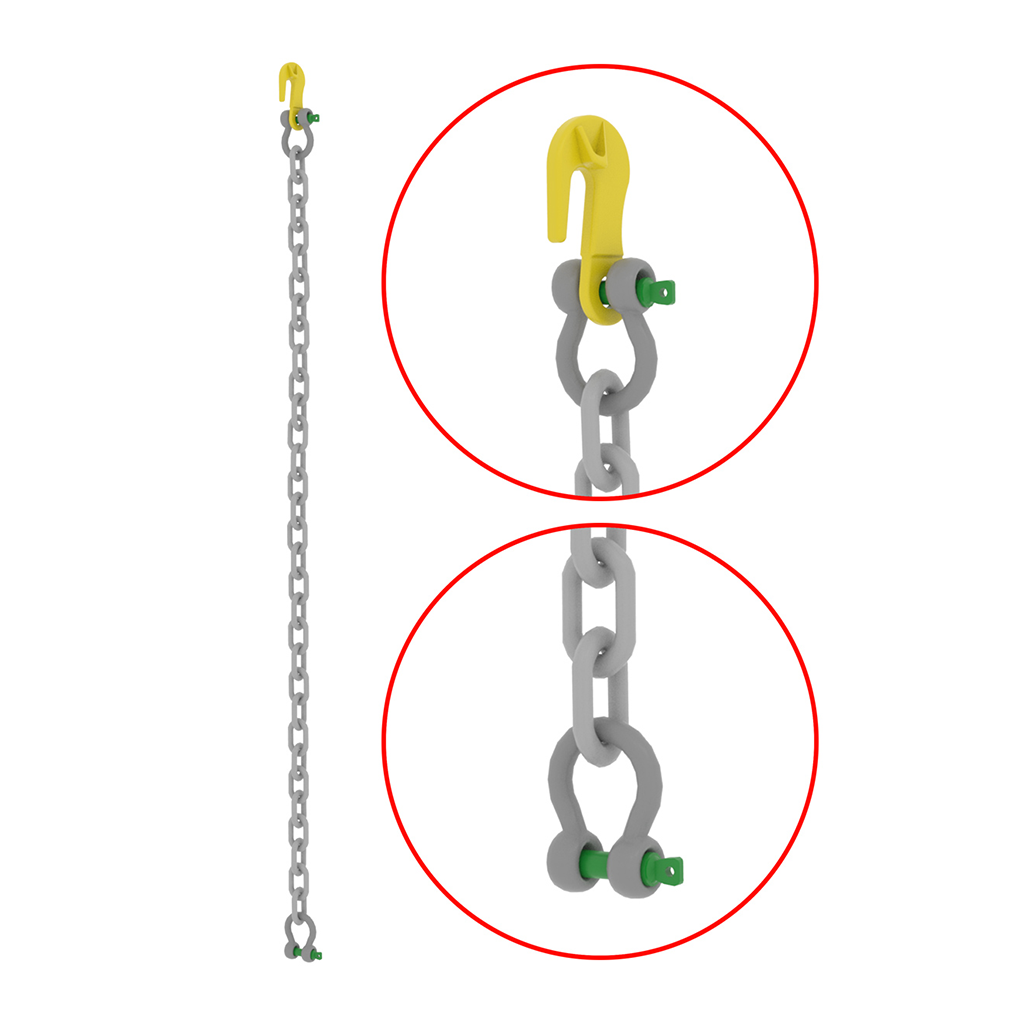

Utiltiy Restraining Chains

Restraining Chains

Designed to provide short term vertical support (via trench sheets or sheet piles) to waler and brace systems assisting the installation/removal process.

Available as hook to shackle (for top frames) and shackle to shackle (lower frames)
Chains can be connected together for additional length

Description

Standard Duty - Hook Type

Standard Duty - Shackle Type

Heavy Duty - Hook Type

Heavy Duty - Shackle Type

Lightweight Restraining Chain (hook)

Lightweight Restraining Chain (shackle)

Length (mm)

2500

2500

2500

2500

1200

1200

Weight (kg)

9

9

14

14

2.0

1.75

SWL (t)

2

2

3.15

3.15

0.47

0.47
