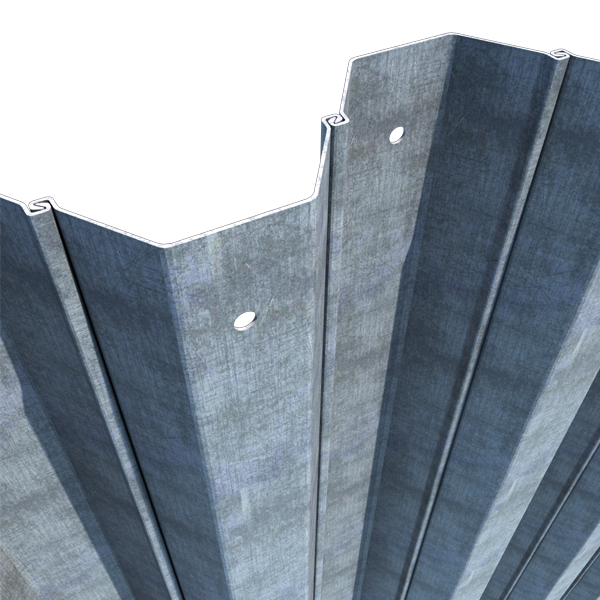

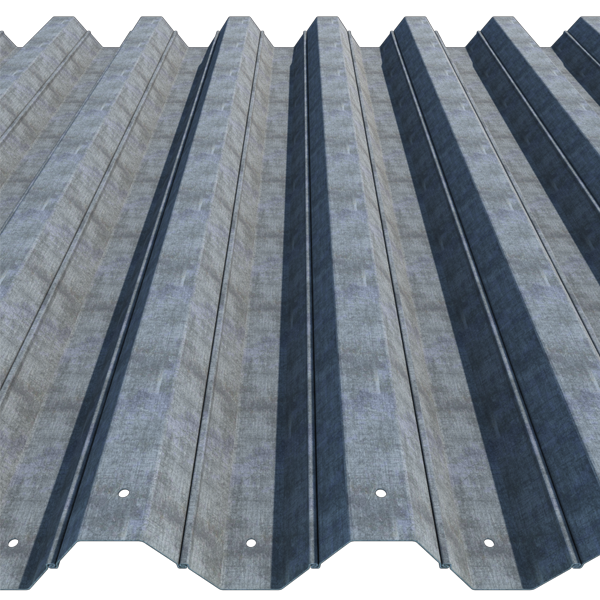

Sheet Piles – GU 21N (S390GP)

Our Product Range / Excavation Solutions / Trench Sheets, & Sheet Piles / Sheet Piles / Sheet Piles – GU 21N (S390GP)

Sheet Piles – GU 21N (S390GP)

Interlocking steel sheet piles form a high strength sheeting system, ideal for supporting the vertical faces of large excavations. U-Type piles are generally supplied as double piles and are provided with the quality-proven Larssen interlock.

Galvansing and clutch sealing service
Range of sections and lengths available to meet strength and driveability requirements
Very good installation quality and performance
Range of corner piles available

Can be supplied and installed as single 600mm wide piles or as double 1200mm wide piles.

Profile

Sheet Piles - GU 21N (S390GP)

W (mm)

600

H (mm)

450

T (mm)

11.1

S (mm)

9.0

Weight (kg/m)

81.9

Weight (kg/m²)

136.5

Moment of Inertia (cm⁴/m)

46380

Elastic Section Modulus (cm³/m)

2060

Plastic Section Modulus (cm³/m)

2422

Class EC3: Part 5

2

Available Min. Hire Lengths (m)

7.0
