UniShore® Medium

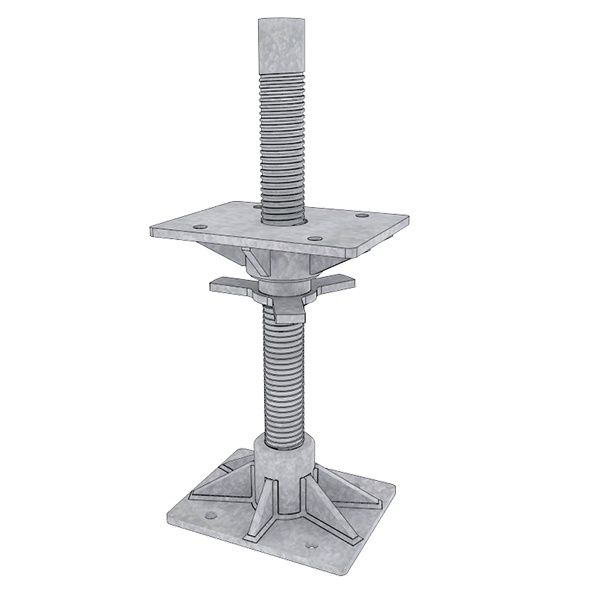

UniShore® Medium is a medium-duty, modular shoring and propping system that can be handled manually when necessary, combined with bending performance to produce stiff cantilever towers where deflection is critical. The jacking unit controls pre-load, de-load or structure movement and UniShore® Light sections can be directly connected as horizontal components, minimising structure weight and cost

• Load capacity of up to 70 tonnes
• Section weight 37 kg/m
• Compact 280mm x 220mm section
• Simple pinned connection provided for either tension or push pull bracing

UniShore® Medium can be bolted directly to UniShore Light and Heavy sections. A range of needle and grillage beams are available.
