Utility Trench Box

A two-sided mechanical excavation support system designed specifically for utility installation and repairs in trench widths of up to 4.0m and 2.5 deep.

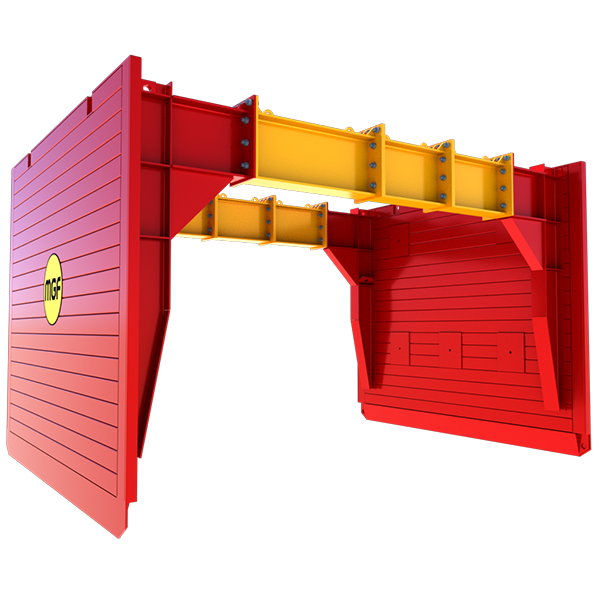

Bolted high clearance struts enabling an understrut clearance of 1.95m and horizontal clearance between the struts of 2.18m
Compatible with existing MGF shoring safety products
Maximum achievable external trench width of up to 4.0m
Installed using the excavate and lower in place technique

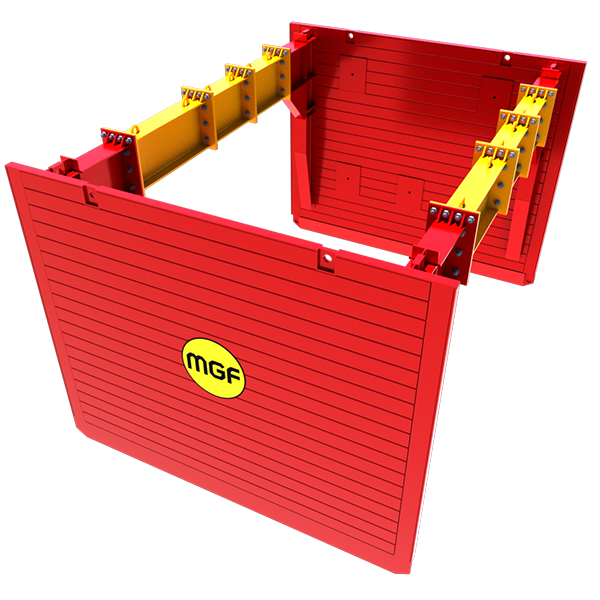

The utility trench box measures 3.0m in length and 2.5m in height.

Utility Trench Box

Clear

External Trench Width (mm)

1620

2300

2620

2970

3300

3620

3970

Internal Trench Width (mm)

1500

2180

2500

2850

3180

3500

3850

Strut Extension Components (per strut)

-

1 No. 675mm (4.1385)

1 No. 1000mm (4.138)

2 No. 675mm (4.1385)

1 No. 675mm (4.1385) & 1 No. 1000mm (4.138)

2 No. 1000mm (4.138)

2 No. 675mm (4.1385) & 1 No. 1000mm (4.138)

Assembled Weight (kg)

1800

1960

2004

2120

2164

2208

2324
